Key Specification
Core product details prepared in a consistent readable table.
| Product Type | Outdoor AP | Radio design | Dual-radio; 4 spatial streams; ● 2.4 GHz: 2 x 2, MU-MIMO; ● 5 GHz: 2 x 2, MU-MIMO |
|---|---|---|---|
| Maximum wireless data rate | 1774 Mbps | 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 1201 Mbps | 2.4 GHz wireless data rate | 573 Mbps |
| Maximum number of associated wireless clients | 64 (2.4 GHz); 256 (5 GHz); 256 (2.4 GHz and 5 GHz enabled) | Antenna | 2.4 GHz: 2 built-in omnidirectional antennas; 5 GHz: 2 built-in omnidirectional antennas |
| Number of 10/100/1000BASE-T ports | 1 | Number of 1GE SFP ports | 1 |
| Maximum number of devices that can be managed | 300 | Power supply | PoE+ |
| Local power supply | No | Maximum power consumption | 18 W |
| PoE budget | No | Product dimensions (W x D x H) | 298 mm x 298 mm x 65 mm (11.73 in. x 11.73 in. x 2.56 in.) (excluding the mounting bracket) |
| Dimensions of the DC connector | No | Weight | ≤ 1.35 kg (2.98 lbs.) (without packaging materials) |
| Operating temperature | –40°C to +65°C (–40°F to +149°F) | IP rating | IP68 |

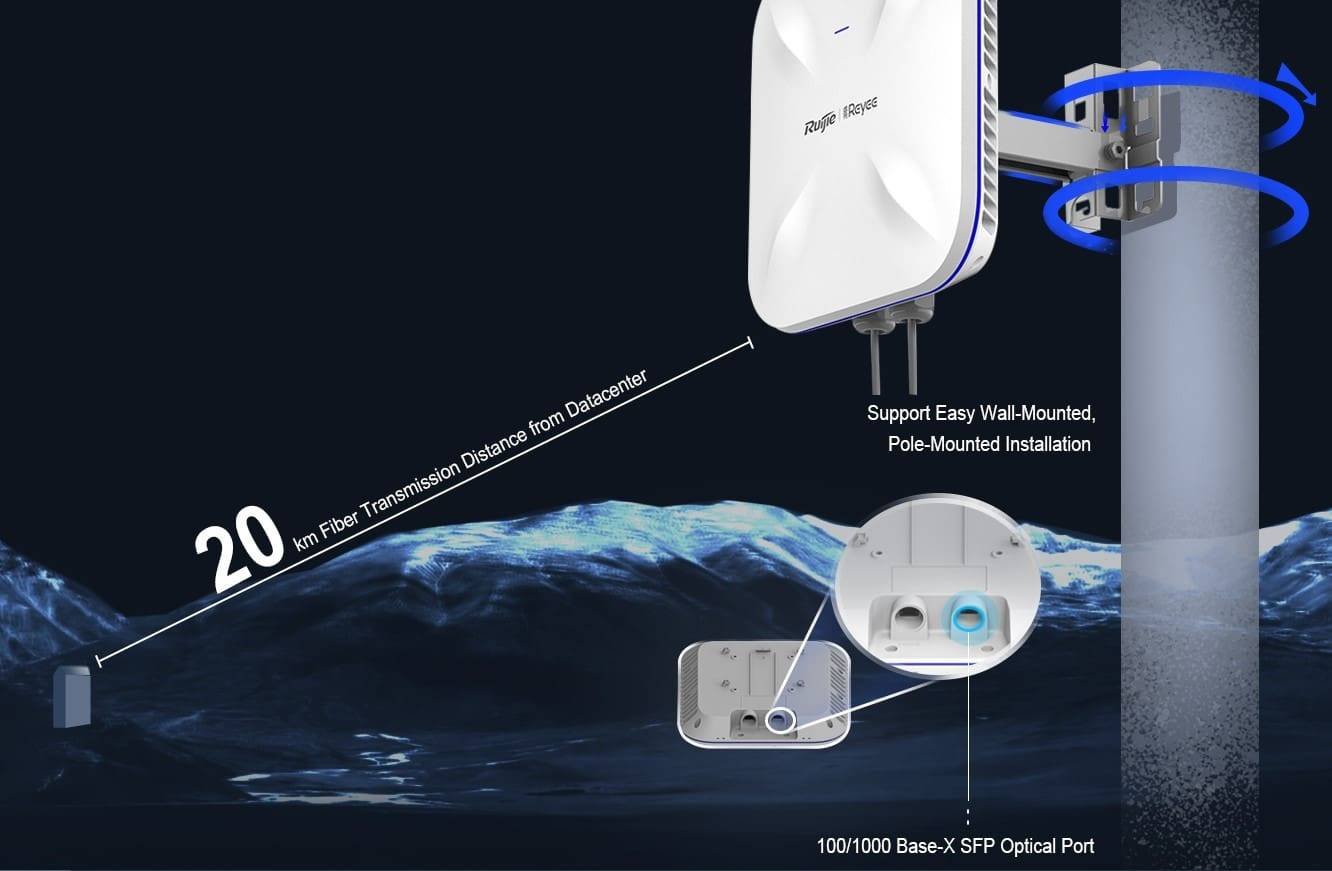

| Mounting options | Wall/Pole | Color | White |

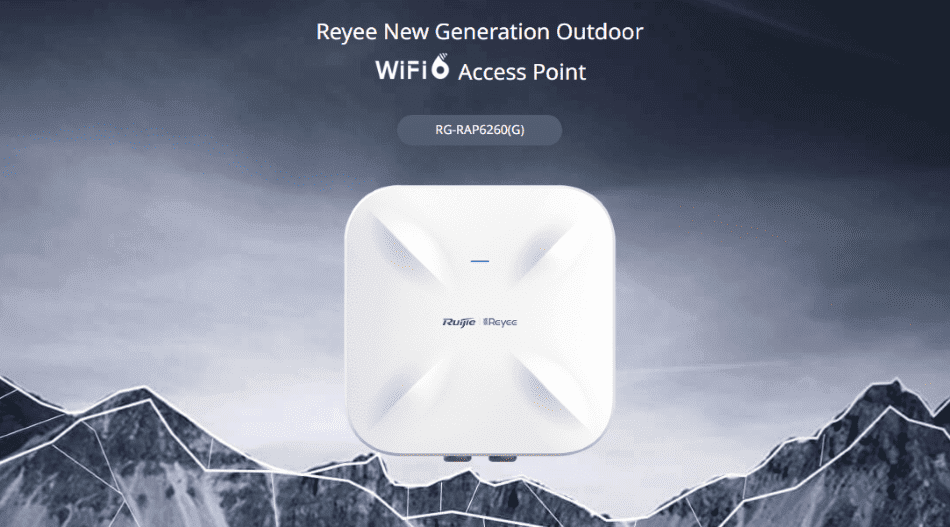

Feature Images
Official product promotional feature images.
Product Video

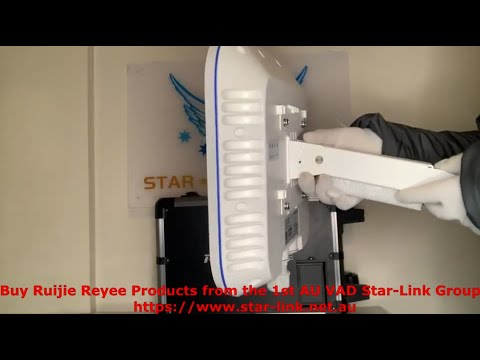

Open box video for Ruijie Reyee RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor Access Point.
RG-RAP6260(G) Open Box Video
Product Resources
Deployment Support
Optional setup guidance and after-sales support available from Star-Link Group.
Deployment Planning
Clear product positioning helps installers choose the right product for each site.
Resource Ready
Official documents are linked for setup, firmware and maintenance reference.
Project Support
Star-Link Group can help with product selection and deployment planning.
Available project support from Star-Link Group:
Free remote configuration is available for your first project and for projects involving three or more devices. Complimentary training is also available if required. Appointments are essential for all configuration and training sessions.
Note: Setup guidance and pre-configuration service are provided by Star-Link Group and are not built-in product features. Please email support@star-link.net.au if you would like to discuss your setup.
